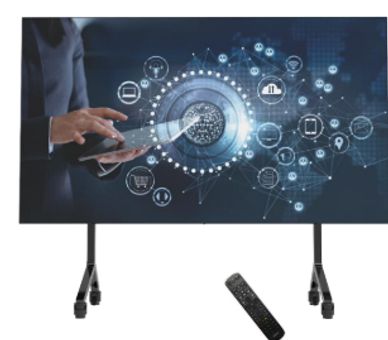

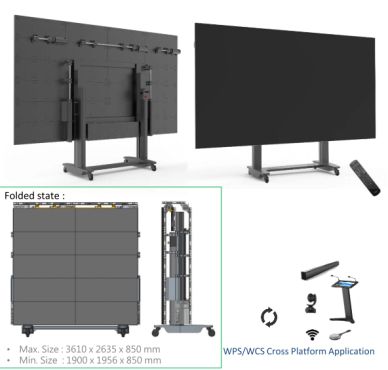

163” 4K LED Display Motorized Foldable AIO

■ Display

• Electric Hight adjustable and Foldable stand

• Screen Size: 163"(4*6 " Panel)

• Resolution: 3840×2160

• Pitch: P0.9 / P1.8mm (COB LED / MiP+GOB)

• Contrast Ratio: 5000: 1(typ.)

• Brightness: 600nits(typ.)

• Viewing Angle: 160°(H/V)

• Color Temperature: 6500 ± 500(K)

• Stand-by power consumption≤0.5(W)

• Built-in Speaker: 320W

Unfold the Extraordinary across Industries

Events & Rental: Deploy a stunning 4K centerpiece in minutes, cutting labor costs and setup times dramatically.

Hospitality: Transform luxury lobbies, VIP lounges, or poolside terraces into dynamic, high-end entertainment zones.

Sports Entertainment: Keep fans glued to the action with lag-free, ultra-bright 4K viewing that beats ambient daylight.

AIO Design with Motorized trolley in carton case

■ Features

• All-in-One integrated TPV Android System

• Easy operation, Ready to Use

• Anti-pinch (10N) with Emergency stop button

• Logistic and elevator capable

■ Non-System

• MTK 92Q + OPS slot

• Non-OS with Media playback

Purpose-Built for Maximum Impact

Gigantic impact. Pocket-sized mobility. Unfold 163 inches of pure 4K brilliance.

The ultimate event centerpiece, now completely mobile.

No installation. No boundaries. Just premium 4K entertainment on demand.

Unfold premium entertainment on a monumental scale, anywhere you need it. The 163" Foldable All-in-One 4K LED Display combines breathtaking cinema-grade visuals with ultimate mobility. Its revolutionary folding design transforms premium spaces instantly, packing a massive 163-inch canvas into a highly portable, setup-friendly package.

Why This Display Changes Everything

Revolutionary Foldable Design: Seamless screen folds down for effortless transport through standard doors and elevators.

Flawless 4K Resolution: Ultra-fine pixel pitch ensures razor-sharp text and lifelike imagery from any viewing distance.

True Turnkey Mobility: Built-in motorized lift, integrated audio, and wireless casting on a heavy-duty mobile stand.

Daylight-Defying Brightness: Outperforms traditional projectors with vibrant colors and deep contrast, even in brightly lit venues.

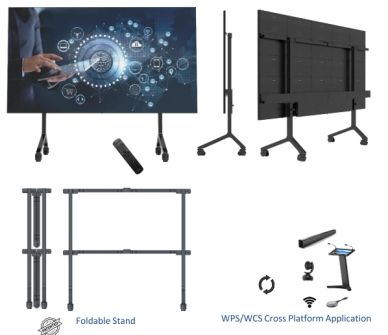

■ Display

• Stand type (Without Base Bar)

• Screen Size: 163"(4*6 " Panel)

• Resolution: 3840×2160, 1920×1080

• Pitch: P0.9 / P1.8mm (COB LED / MiP+GOB)

• Contrast Ratio: 5000: 1(typ.)

• Brightness: 600nits(typ.)

• Viewing Angle: 160°(H/V)

• Color Temperature: 6500 ± 500(K)

• Stand-by power consumption≤0.5(W)

• Built-in Speaker: 320W

■ Features

• All-in-One integrated TPV Android System

• Easy operation

■ Non-System

• MTK 92Q + OPS slot

• Media playback

Why Choose the 163" All-in-One LED Display?

■ Zero Hassel: No installation required

■ Brilliant Visuals: High brightness cuts through ambient light.

■ All-Inclusive: Built-in audio, processing, and wireless sharing.

■ Unmatched Presence: Massive 135-inch seamless canvas.

Impact Across Every Industry

■ Education: Boost student engagement with ultra-clear lessons.

■ Government: Build trust with flawless presentations and data dashboards.

■ Events: Captivate crowds with vibrant, lag-free live streaming.

■ Hospitality: Elevate guest experiences with stunning lobby visuals.

■ Corporate: Streamline hybrid collaboration in large boardrooms.

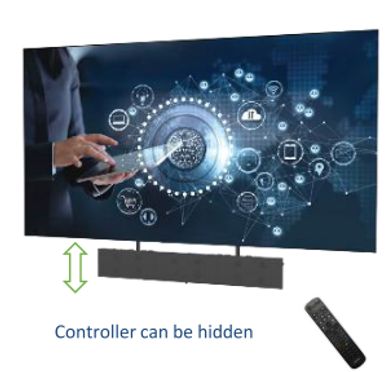

■ Display

• Wall Mount

• Screen Size: 163"(4*6 " Panel)

• Resolution: 3840×2160, 1920×1080

• Pitch: P0.9 / P1.8mm(COB LED / MiP+GOB)

• Contrast Ratio: 5000 : 1(typ.)

• Brightness: 600nits(typ.)

• Viewing Angle: 160°(H/V)

• Color Temperature: 6500 ± 500(K)

• Stand-by power consumption≤0.5(W)

• Built-in Speaker: 320W

■ Features

• All-in-One integrated TPV Android System

• Easy operation

■ Non-System

• MTK 92Q + OPS slot

• Media playback

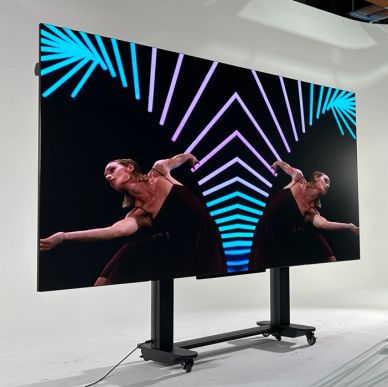

Sleek Design. Monumental Presence.

Flush-to-Wall Elegance: An ultra-slim profile that mounts tightly to the wall, blending seamlessly into modern executive offices, lobbies, and briefing rooms.

Bezel-Free Canvas: A single, continuous 163-inch surface that completely replaces restrictive, multi-screen video walls with perfect alignment.

100% Cable-Free Front: All processing, power, and audio systems are neatly integrated inside the chassis, hiding all messy cords from sight.

Transform your wall into a breathtaking, seamless architectural centerpiece. The 163" All-in-One Wall-Mount LED Display delivers monumental visual impact with an ultra-thin, flush-to-wall profile. It completely eliminates bulky equipment racks, complex wiring, and ugly bezels, turning any room into a premium viewing environment.

Elevate Every Space

Corporate Boardrooms: Command high-stakes executive meetings with a prestigious, zero-footprint presentation wall.

Luxury Hospitality: Captivate guests the moment they arrive with stunning, continuous artwork or digital signage in the lobby.

Command & Control: Maintain flawless situational awareness with clear, expansive data visualization that saves valuable floor space.

✓ Resolution at 1920(H) x 1080(V) / P1.5 mm

✓ Ready to use without assembly

✓ All-in-One integrated System

✓ COB Direct View LED

✓ Auto Motorized lift and Foldable

✓ Anti-pinch

✓ Emergency stop button

■ Display

• Electric Hight adjustable and Foldable stand

• Screen Size: 135"(5*5 27.3" Panel)

• Pitch: P1.5mm (COB)

• Contrast Ratio: 5000: 1(typ.)

• Brightness: 450 / 600nits(typ.)

• Viewing Angle: 160°(H/V)

• Color Temperature: 6500 ± 500(K)

• Stand-by power consumption≤0.5(W)

• Built-in Speaker: 10Wx2

AIO Design with Motorized trolley in carton case

✓ ESG Design for Packing material (ESG)

✓ Logistic and elevator capable:

      1920x1867x885mm, Net weight = 249kg

✓ Unit with stand (W x H x D):

       1800 x 1857 x 850mm (Min.);

       3010 x 2457 x 850mm (Max.)

■ System

• All-in-One integrated Android System

• MTK 68402+ RK3399 / GK6760V100

• Android 11 / Android 12

• CPU: Dual-core Cortex-A72 and

quad-core Cortex-A53

• RAM-4G, Flash-32G

• WIFI 6 2T/2R

Go big, keep it simple, and captivate every audience. The 135" All-in-One LED Display delivers a massive, seamless canvas with zero installation hassle. It brings your content to life with stunning brightness and integrated power built for any environment.

One Display. Endless Possibilities.

■ Entertainment: Turn movie nights and gaming into cinematic spectacles.

■ Events: Command the room with vibrant, lag-free live streaming.

■ Hospitality: Welcome guests with breathtaking digital lobby experiences.

■ Education: Dynamic lessons that keep every student engaged.

■ Corporate: Flawless hybrid meetings with effortless wireless sharing.

Key Benefits

■ Massive & Seamless: No distracting bezels or split lines.

■ Plug & Play: Built-in audio, control systems, and media players.

■ Any-Light Clarity: Ultra-bright LEDs outperform traditional projectors.

■ Sleek Design: Ultra-thin profile mounts beautifully on any wall.

■ Display

• Stand type (Without Base Bar )

• Screen Size: 135"(5*5 27.3" Panel)

• Resolution: 1920×1080

• Pitch: P1.5mm(COB)

• Contrast Ratio: 5000 : 1(typ.)

• Brightness: 450 / 600nits(typ.)

• Viewing Angle: 160°(H/V)

• Color Temperature: 6500 ± 500(K)

• Stand-by power consumption≤0.5(W)

• Built-in Speaker: 10Wx2

■ Features

• All-in-One integrated TPV Android System

• Easy operation

A■ System

• MTK 68402+ RK3399 / GK6760V100

/ MTK 92Q + OPS slot

• Android 11 / Android 12 / Non OS

• CPU : Dual-core Cortex-A72 and

quad-core Cortex-A53

• RAM-4G, Flash-32G

• WIFI 6 2T/2R

Why Choose the 135" All-in-One LED Display?

■ Zero Hassel: Seamless installation without complex wiring.

■ Brilliant Visuals: High brightness cuts through ambient light.

■ All-Inclusive: Built-in audio, processing, and wireless sharing.

■Unmatched Presence: Massive 135-inch seamless canvas.

Impact Across Every Industry

■ Education: Boost student engagement with ultra-clear lessons.

■ Government: Build trust with flawless presentations and data dashboards.

■ Events: Captivate crowds with vibrant, lag-free live streaming.

■ Hospitality: Elevate guest experiences with stunning lobby visuals.

■ Corporate: Streamline hybrid collaboration in large boardrooms.

■ Display

• Wall Mount

• Screen Size: 135"(5*5 27.3" Panel)

• Resolution: 1920×1080

• Pitch: P1.5mm (COB)

• Contrast Ratio: 5000: 1(typ.)

• Brightness: 450 / 600nits(typ.)

• Viewing Angle: 160°(H/V)

• Color Temperature: 6500 ± 500(K)

• Stand-by power consumption≤0.5(W)

• Built-in Speaker: 10Wx2

■ Features

• All-in-One integrated TPV Android System

• Easy operation

■ System

• MTK 68402+ RK3399 / GK6760V100

/ MTK 92Q + OPS slot

• Android 11 / Android 12 / Non-OS

• CPU: Dual-core Cortex-A72 and

quad-core Cortex-A53

• RAM-4G, Flash-32G

• WIFI 6 2T/2R

Sleek Design. Monumental Presence.

Flush-to-Wall Elegance: An ultra-slim profile that mounts tightly to the wall, blending seamlessly into modern executive offices, lobbies, and briefing rooms.

Bezel-Free Canvas: A single, continuous 135-inch surface that completely replaces restrictive, multi-screen video walls with perfect alignment.

100% Cable-Free Front: All processing, power, and audio systems are neatly integrated inside the chassis, hiding all messy cords from sight.

Transform your wall into a breathtaking, seamless architectural centerpiece. The 135" All-in-One Wall-Mount LED Display delivers monumental visual impact with an ultra-thin, flush-to-wall profile. It completely eliminates bulky equipment racks, complex wiring, and ugly bezels, turning any room into a premium viewing environment.

Elevate Every Space

Corporate Boardrooms: Command high-stakes executive meetings with a prestigious, zero-footprint presentation wall.

Luxury Hospitality: Captivate guests the moment they arrive with stunning, continuous artwork or digital signage in the lobby.

Command & Control: Maintain flawless situational awareness with clear, expansive data visualization that saves valuable floor space.

Outdoor Pitch

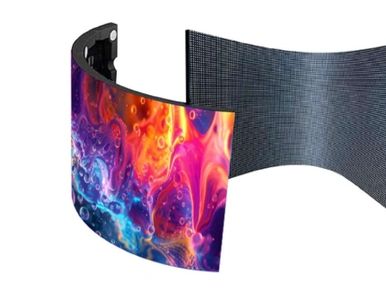

    2.5mm Flexible LED display Module

✓ Size and backlight 320x160mm

✓Module Resolution 128x64 Pixels

Panel

✓ Cabinet size 900x400mm

✓ Panel Resolution 512x320

✓ Material Iron

✓ Weight About 50KG

✓ Brightness 4000nits

✓ Refresh rate 3840 Hz

✓Viewing angle 140(H), 110(V) deg.

Power

✓ Input range 100 ~ 240 V 50/60 Hz

✓ power consumption 780 W/m2

 Weatherproof Design: IP65-rated to resist heavy rain, dust, and extreme temperatures.

Sunlight Readable: Ultra-high brightness ensures vivid colors even in direct sunlight.

Unmatched Flexibility: Bend, fold, and curve to fit any architectural structure.

Energy Efficient: Low power consumption reduces your operational costs.

Lightweight Frame: Easy to install, scale, and maintain without heavy support.

Transform your storefront, event venue, or public space today.

Traditional screens limit your creativity. Our ultra-durable, bendable LED technology wraps seamlessly around pillars, curves, and uneven surfaces to turn any outdoor space into a stunning visual experience.

 Seamless Control: Compatible with major media servers and matrix switchers

Rapid Deployment: Lightweight, magnetic modules ensure fast, low-cost installation.

Front Serviceable: Easy component replacement minimizes client downtime and maintenance.

Rugged Reliability: IP65 weatherproof rating eliminates thermal management headaches.

Infinite Scalability: Daisy-chain panels effortlessly to fit any custom dimension.

Win more high-value bids and solve your clients' toughest architectural challenges.

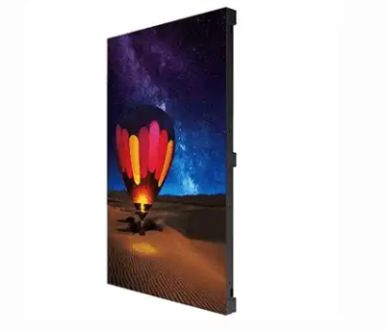

Architectural precision meets engineering excellence. Our flush-mount In-Wall LED Display Panels merge seamlessly with your structural designs, offering a flawless, zero-bezel canvas that elevates any space without compromising structural integrity.

For Architects: Pure Visual Harmony

■True Flush Mounting: Integrates perfectly into drywall, concrete, or custom millwork.

■Ultra-Slim Profile: Minimizes wall-depth footprint to maximize usable spatial square footage.

■Aesthetic Minimalism: Eliminates visible wires, bulky frames, and external mounting hardware.

■Design Versatility: Adapts to curved walls, sharp corners, and massive scale requirements.

■Front-Serviceable Modules: Access pixels, cards, and power supplies directly from the front.

■Precision Alignments: Features built-in magnetic locking systems for perfect seam calibration.

■Lightweight Cabinets: Reduces structural load and eases handling during high-altitude tasks.

■Pre-Calibrated Panels: Drastically cuts down on-site color matching and configuration times.

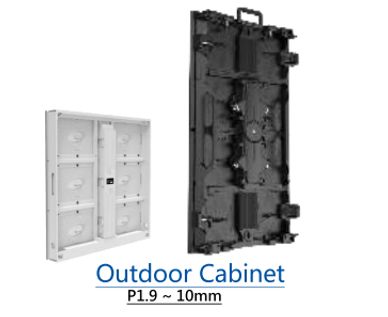

■ Cabinet

• Module type (COB LED / MiP+GOB / SMD)

• Contrast Ratio: 5000:1 / 3000:1

• Brightness: 600~2800 nits(typ.)

• Viewing Angle: 160°(H/V)

• Color Temperature: 6500 ± 500(K)

• Common Anode / Cathode design

• AL Die-casting Cabinet

■ Features

• Fully Front maintenance; Easy service by Vacuum device;

• Regulatory approvals options: FCC SDOC, Part 15 EMC Class B

• Dynamic power saving black screen power saving.

• High refresh rate 3840Hz, Frame Frequency 50&60Hz

• Brightness / Color uniformity Calibration

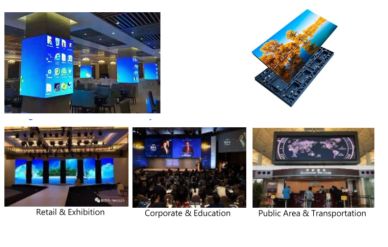

Transform your environment with our premium In-Wall LED Display Panels. Seamlessly integrated into any architecture, these displays deliver stunning visuals, vivid colors, and crisp clarity to captivate your audience.

Retail

■Drive higher foot traffic.

■Showcase dynamic digital lookbooks.

■Launch instant, store-wide promotions.

■Eliminate physical printing costs.

Exhibition

■Dominate the showroom floor.

■Build immersive, high-impact booths.

■Engage visitors with interactive media.

■Install quickly with modular designs.

Corporate Events

■Elevate your brand presence.

■Deliver flawless keynote presentations.

■Welcome guests with digital signage.

■Foster high-energy viewer engagement.

Public Transportation

■Stream continuous real-time schedules.

■Guide passengers with clear wayfinding.

■Generate revenue through ad space.

■Rely on 24/7 commercial-grade durability.

Why Choose Our Cabinet LED Panels?

Ultra Slim: Blends seamlessly under any cabinet.

Shadow Free: Delivers smooth, perfectly even light.

Dimmable Control: Adjusts easily from bright to cozy.

Energy Saving: Consumes minimal power daily.

Linkable Design: Connects multiple panels together smoothly.

Transform your dark cabinetry into a beautifully lit feature today.

L2119 Series (L21x3)

• P1.9mm SMD, 800/3200nits
• 1500x250mm

W2212S (Left)

• P1.2mm SMD, 600/800nits
• 16:9 ratio
• Die Casting, Mainstream

NR Series

• P2.5mm SMD,550nits
• 640x480mm
• Die Casting, Fighter

W2209F(Right)

• P0.9mm 4in1 type, 600/800nits
• 16:9 ratio
• Die Casting, Mainstream

S22 Series

• P3.9mm SMD, 800/3200nits
• 500x500mm
• Die Casting, Mainstream

Core Applications

Lobby Centered Artwork: Replaces traditional art with atmospheric landscapes, digital branding, or local scenery to create a memorable first impression.

Ballrooms & Conference Halls: Acts as high-definition stage backdrops for weddings, corporate presentations, and live events.

Wayfinding & Concierge: Displays digital schedules, flight information, weather updates, and property maps dynamically.

Luxury Accent Lighting: Blends customizable LED illumination with architectural materials like marble or wood panels to create high-end design accents

Command attention in any environment with our commercial-grade Outdoor LED Displays. Engineered to thrive in harsh conditions, these displays combine extreme brightness with rugged durability to deliver high-impact visuals that get noticed from blocks away.

Architectural Precision & Design Freedom

Seamless Facade Integration: Blends cleanly into building envelopes, curtain walls, and concrete structures.

Flexible Configuration: Scales effortlessly into massive digital billboards, curved surfaces, or vertical ribbons.

Aesthetic Preservation: Complements modern building profiles with low-weight cabinetry and slim depths.

 Maximize your ad revenue and command maximum brand attention with our next-generation Digital Out-of-Home (DOOH) Displays. Built specifically for high-traffic advertising networks, these high-impact displays combine cinematic visual quality with rugged, 24/7 reliability.

Structural Compatibility: Fits cleanly into street furniture, transit shelters, shopping malls, and building facades.

Low-Profile Enclosures: Maximizes public pedestrian sidewalk space with ultra-slim cabinet depths.

Maximize structural durability and installation efficiency with our commercial-grade Outdoor Cabinet LED Displays. Engineered as a fully self-contained solution, these robust cabinets protect sensitive electronics from harsh elements while delivering brilliant, high-visibility visuals.

Engineered for Architects: Clean Structural Integration

Modular Scale: Links multiple cabinets seamlessly to create massive, perfectly flat digital canvases.

Slim Structural Footprint: Minimizes overall depth to preserve building lines and meet strict zoning limits.

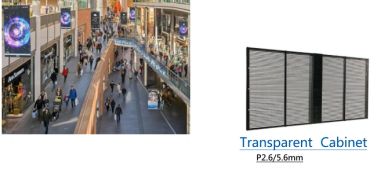

 Deliver striking visual impact without blocking natural light or structural views using our Premium Transparent Cabinet LED Displays. Engineered for high-end glass facades, luxury retail windows, and modern architectural spaces, these lightweight cabinets blend digital innovation seamlessly with structural transparency.

Up to 80% Transparency: Maintains clear lines of sight and allows natural daylight to flood building interiors.

Minimalist Aesthetics: Hides power supplies and data cables inside ultra-slim, sleek cabinet frames.

Glass Facade Harmony: Transforms window surfaces into brilliant digital screens without altering architectural profiles.

Turn bare windows into brilliant digital media screens with our architectural-grade Glass Type LED Display Panels. By embedding high-density pixels directly into structural glass, this solution provides high-impact video performance while preserving natural daylight and building views.

For Architects: Pure Media Integration

Structural Integration: Replaces standard building glass directly without requiring heavy secondary framing.

Maximum Transparency: Allows up to 90% of natural light to pass through for bright building interiors.

Clean Visual Lines: Conceals power channels and data matrices invisibly inside the window mullions.

Design Customization: Scales perfectly into massive glass curtain walls, glass railings, and entrance canopies.

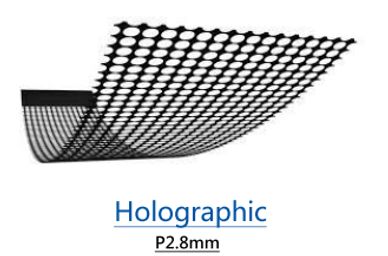

Captivate audiences and disrupt traditional spaces with our next-generation Holographic LED Display Panels. By blending ultra-transparent mesh substrates with high-density micro-LED pixels, these displays project floating 3D visuals that appear to hover mid-air, delivering an unforgettable, high-impact spatial experience.

For Architects: Spatial Magic & Invisible Tech

Unmatched 95% Transparency: Ensures the display panel is virtually invisible when powered off to preserve spatial views.

True 3D Floating Effect: Projects volumetric-style content without requiring clunky 3D glasses or enclosures.

Futuristic Aesthetics: Blends seamlessly into luxury retail storefronts, corporate atriums, and museum exhibits.

Lightweight Spatial Integration: Mounts cleanly to ceilings, glass walls, or minimal suspension wires.
